EAPOL (Extensible Authentication Protocol over LAN)

IEEE 802.1X is an IEEE standard for port-based Network Access Control (PNAC). Devices wanting to access the network must authenticate themselves before accessing it. It’s commonly used in corporate networks where we require user or device authentication.




Here is the topology I’ll use:

Eapol Eap Md5 Lab Topology

I’ll use the EAP-MD5 method because it’s one of the simplest EAP methods to set up. It’s insecure, so you shouldn’t use it in production anymore. EAP-MD only uses a challenge and response. Here are the devices I use:

  • The host is a Ubuntu machine. I like to use Ubuntu because it has 802.1X support and still supports EAP-MD5.
  • The switch is a Cisco catalyst 3850 running Cisco IOS Software, IOS-XE Software, Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 03.07.05.E RELEASE SOFTWARE (fc1).
  • The RADIUS server is a freeradius server. You can use my Alpine freeradius image. It is simple to set up, and it supports many EAP methods.

Setting up 802.1X on Ubuntu is straightforward. Under network settings, you only have to enable 802.1X and specify the EAP method and credentials.Here it is:

Ubuntu 8021x Eap Md5

Configurations

Want to take a look for yourself? Here, you will find the startup configuration of the authenticator (SW1) and the configuration files for the freeradius server.

SW1

hostname SW1
!
username admin privilege 15 secret 5 $1$YVOP$xaZpE.nA.FwvKwXxtvzTw1
aaa new-model
!
aaa authentication dot1x default group radius
!
aaa session-id common
!
ip dhcp pool VLAN10
 network 192.168.10.0 255.255.255.0
!
dot1x system-auth-control
!
interface GigabitEthernet1/0/11
 switchport access vlan 10
 switchport mode access
 authentication host-mode multi-auth
 authentication port-control auto
 dot1x pae authenticator
 spanning-tree portfast
!
interface GigabitEthernet1/0/12
 switchport access vlan 10
 switchport mode access
 spanning-tree portfast
!
interface Vlan10
 ip address 192.168.10.100 255.255.255.0
!
radius server FREERADIUS
 address ipv4 192.168.10.200 auth-port 1812 acct-port 1813
 key CISCO

docker-compose.yml

version: '2'
services:
 freeradius:
  image: networklessons/docker-alpine-freeradius:1
  ports:
   - 1812:1812/udp
   - 1813:1813/udp
  volumes:
   - "./clients.conf:/etc/raddb/clients.conf"
   - "./users:/etc/raddb/users"
   - "./eap:/etc/raddb/mods-enabled/eap"

clients.conf

client CISCO {
  ipaddr                = 0.0.0.0/0
  secret                = CISCO
  }

eap

eap {
        default_eap_type = md5
        timer_expire = 60
        ignore_unknown_eap_types = no
        cisco_accounting_username_bug = no
        max_sessions = ${max_requests}

        md5 {
        }
}

users

ubuntu          Cleartext-Password := "ubuntu"

I’ll show you all the packets from both sides: EAPOL and RADIUS.

EAPOL

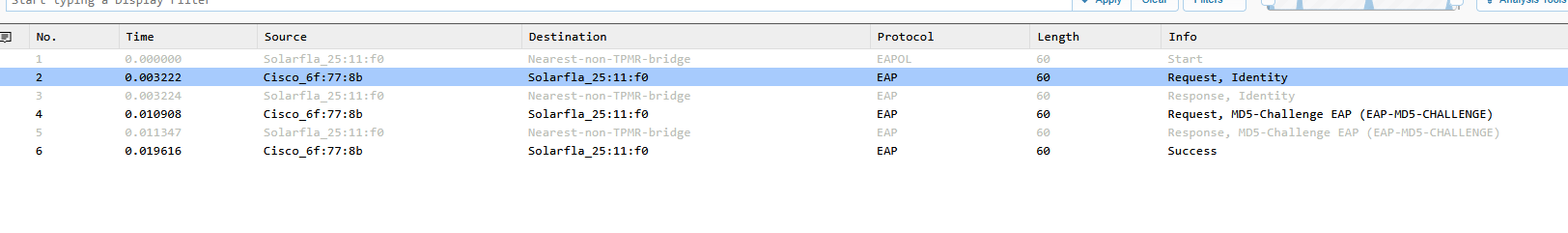

Let’s start with the EAPOL packets. If you want to see them for yourself, you can download them here:

802.1X EAP-MD5 EAPOL

EAPOL-Start

The EAPOL-Start packet is the first one and is sent from the supplicant to the authenticator:

Frame 1: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface -, id 0
Ethernet II, Src: Solarfla_25:11:f0 (00:0f:53:25:11:f0), Dst: Nearest-non-TPMR-bridge (01:80:c2:00:00:03)
    Destination: Nearest-non-TPMR-bridge (01:80:c2:00:00:03)
    Source: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Type: 802.1X Authentication (0x888e)
    Padding: 000000000000000000000000000000000000000000000000000000000000000000000000…
802.1X Authentication
    Version: 802.1X-2001 (1)
    Type: Start (1)
    Length: 0

Here’s what we see:

  • The packet is destined for the Ethernet multicast address 0180:c200:0003.
  • The Ethertype is 0x888E.
  • The version is set to 802.1X-2001.
  • The type is “Start”.

EAP-Request/Identity

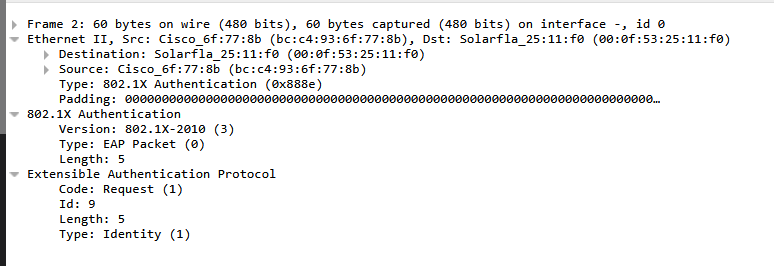

The authenticator sends the EAP-Request/Identity packet to the supplicant:

Frame 2: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface -, id 0
Ethernet II, Src: Cisco_6f:77:8b (bc:c4:93:6f:77:8b), Dst: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Destination: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Source: Cisco_6f:77:8b (bc:c4:93:6f:77:8b)
    Type: 802.1X Authentication (0x888e)
    Padding: 000000000000000000000000000000000000000000000000000000000000000000000000…
802.1X Authentication
    Version: 802.1X-2010 (3)
    Type: EAP Packet (0)
    Length: 5
Extensible Authentication Protocol
    Code: Request (1)
    Id: 9
    Length: 5
    Type: Identity (1)

The output above shows that the version is set to 802.1X-2010, and the type is an EAP packet. The EAP message shows that the code is set to request, and the type is identity.

EAP-Response/Identity

The supplicant replies with the EAP-Response/Identity packet:

Frame 3: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface -, id 0
Ethernet II, Src: Solarfla_25:11:f0 (00:0f:53:25:11:f0), Dst: Nearest-non-TPMR-bridge (01:80:c2:00:00:03)
    Destination: Nearest-non-TPMR-bridge (01:80:c2:00:00:03)
    Source: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Type: 802.1X Authentication (0x888e)
    Padding: 00000000000000000000000000000000000000000000000000000000000000
802.1X Authentication
    Version: 802.1X-2001 (1)
    Type: EAP Packet (0)
    Length: 11
Extensible Authentication Protocol
    Code: Response (2)
    Id: 9
    Length: 11
    Type: Identity (1)
    Identity: ubuntu

Above, we see that the code is set to response, and the type is identity. The identity shows “ubuntu”, the username I configured on my desktop.

EAP-Request/Challenge

The authenticator will forward the challenge from the RADIUS server to the supplicant in the EAP-Request/Challenge packet:

Frame 4: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface -, id 0
Ethernet II, Src: Cisco_6f:77:8b (bc:c4:93:6f:77:8b), Dst: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Destination: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Source: Cisco_6f:77:8b (bc:c4:93:6f:77:8b)
    Type: 802.1X Authentication (0x888e)
    Padding: 0000000000000000000000000000000000000000
802.1X Authentication
    Version: 802.1X-2010 (3)
    Type: EAP Packet (0)
    Length: 22
Extensible Authentication Protocol
    Code: Request (1)
    Id: 10
    Length: 22
    Type: MD5-Challenge EAP (EAP-MD5-CHALLENGE) (4)
        [Expert Info (Warning/Security): Vulnerable to MITM attacks. If possible, change EAP type.]
            [Vulnerable to MITM attacks. If possible, change EAP type.]
            [Severity level: Warning]
            [Group: Security]
    EAP-MD5 Value-Size: 16
    EAP-MD5 Value: 07132be14ba1bfea95cfe460094a23fb

This output shows that the code is set to request, and the type is MD5-Challenge EAP. The challenge is included under the EAP-MD5 Value.

EAP-Response/Challenge

The supplicant will reply with the EAP-Response/Challenge packet:

Frame 5: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface -, id 0
Ethernet II, Src: Solarfla_25:11:f0 (00:0f:53:25:11:f0), Dst: Nearest-non-TPMR-bridge (01:80:c2:00:00:03)
    Destination: Nearest-non-TPMR-bridge (01:80:c2:00:00:03)
    Source: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Type: 802.1X Authentication (0x888e)
    Padding: 0000000000000000000000000000000000000000
802.1X Authentication
    Version: 802.1X-2001 (1)
    Type: EAP Packet (0)
    Length: 22
Extensible Authentication Protocol
    Code: Response (2)
    Id: 10
    Length: 22
    Type: MD5-Challenge EAP (EAP-MD5-CHALLENGE) (4)
        [Expert Info (Warning/Security): Vulnerable to MITM attacks. If possible, change EAP type.]
            [Vulnerable to MITM attacks. If possible, change EAP type.]
            [Severity level: Warning]
            [Group: Security]
    EAP-MD5 Value-Size: 16
    EAP-MD5 Value: 6492f6ebd6ce9b437643ea37ac9b24c5

The code is set to response. The type is MD5-Challenge EAP. It also includes the response under EAP-MD5 Value.

EAP-Success

Finally, the supplicant receives the EAP-Success packet from the authenticator:

Frame 6: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface -, id 0
Ethernet II, Src: Cisco_6f:77:8b (bc:c4:93:6f:77:8b), Dst: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Destination: Solarfla_25:11:f0 (00:0f:53:25:11:f0)
    Source: Cisco_6f:77:8b (bc:c4:93:6f:77:8b)
    Type: 802.1X Authentication (0x888e)
    Padding: 000000000000000000000000000000000000000000000000000000000000000000000000…
802.1X Authentication
    Version: 802.1X-2010 (3)
    Type: EAP Packet (0)
    Length: 4
Extensible Authentication Protocol
    Code: Success (3)
    Id: 10
    Length: 4

The code is set to Success.

RADIUS

While we are at it, let’s also look at the RADIUS packets. You can take a look for yourself here:

We're Sorry, Full Content Access is for Members Only...

If you like to keep on reading, Become a Member Now!

  • Learn any CCNA, CCNP and CCIE R&S Topic. Explained As Simple As Possible.
  • Try for Just $1. The Best Dollar You’ve Ever Spent on Your Cisco Career!
  • Full Access to our 800 Lessons. More Lessons Added Every Week!
  • Content created by Rene Molenaar (CCIE #41726)
520 Sign Ups in the last 30 days
satisfaction-guaranteed

  • 100% Satisfaction Guaranteed!
  • You may cancel your monthly membership at any time.
  • No Questions Asked!
