Cisco ASA Hairpin Remote VPN Users

The Cisco ASA firewall doesn’t like traffic that enters and exits the same interface. This behavior is typically known as “hairpin” or “u-turn”. Sometimes however we need our ASA to permit this kind of traffic. Here’s an example:

Cisco ASA Remote Access VPN Hairpin

Above we have an ASA firewall on the left side, there’s a remote VPN uses that connects to our firewall. This remote VPN user is not using split horizon so all traffic is being tunneled to the ASA. Let’s say this user wants to reach some webserver (2.2.2.2) on the Internet behind R2.

The Cisco ASA firewall doesn't like traffic that enters and exits the same interface. This behavior is typically known as "hairpin" or "u-turn". Sometimes however we need our ASA to permit this kind of traffic. Here's an example: Above we have an ASA firewall on the left side, there's a remote VPN u



Here’s what our traffic pattern will look like:

Cisco ASA Remote Access VPN Hairpin Traffic

Our traffic will enter the ASA on its outside Gigabit 0/0 interface and exits the same interface. By default, the ASA will drop this traffic. The second issue with this setup is that the source IP address will be from the 192.168.10.0/24 subnet. Since this is a private range, R2 will drop the traffic when it has to be routed to the Internet.

Let’s see what we have to do to fix this issue…

Startup Configurations

Want to take a look for yourself? Here you will find the startup configuration of each device.

R2

hostname R2
!
interface Loopback0
 ip address 2.2.2.2 255.255.255.255
!
interface GigabitEthernet0/1
 ip address 192.168.2.2 255.255.255.0
 duplex auto
 speed auto
 media-type rj45
!
ip http server
!
end

ASA1

hostname ASA1
!
ip local pool VPN_POOL 192.168.10.100-192.168.10.200
!
interface GigabitEthernet0/1
 nameif INSIDE
 security-level 100
 ip address 192.168.1.254 255.255.255.0
!
ftp mode passive
object network VPN_POOL
 subnet 192.168.10.0 255.255.255.0
!
route OUTSIDE 0.0.0.0 0.0.0.0 192.168.2.2 1
!
crypto ipsec ikev1 transform-set MY_TRANSFORM_SET esp-aes esp-sha-hmac
crypto ipsec security-association pmtu-aging infinite
crypto dynamic-map MY_DYNA_MAP 10 set ikev1 transform-set MY_TRANSFORM_SET
crypto map MY_CRYPTO_MAP 10 ipsec-isakmp dynamic MY_DYNA_MAP
crypto map MY_CRYPTO_MAP interface OUTSIDE
crypto isakmp identity address
crypto ikev1 enable OUTSIDE
crypto ikev1 policy 10
 authentication pre-share
 encryption aes
 hash sha
 group 2
 lifetime 86400
!
group-policy VPN_POLICY internal
group-policy VPN_POLICY attributes
 vpn-idle-timeout 15
dynamic-access-policy-record DfltAccessPolicy
username VPN_USER password E5PbZWWQ.j3bJJHz encrypted
tunnel-group MY_TUNNEL type remote-access
tunnel-group MY_TUNNEL general-attributes
 address-pool VPN_POOL
 default-group-policy VPN_POLICY
tunnel-group MY_TUNNEL ipsec-attributes
 ikev1 pre-shared-key *****
!
class-map inspection_default
 match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum client auto
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect ip-options
  inspect netbios
  inspect rtsp
  inspect sunrpc
  inspect tftp
  inspect xdmcp
  inspect dns preset_dns_map
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect rsh
  inspect esmtp
  inspect sqlnet
  inspect sip
  inspect skinny
  inspect icmp
policy-map type inspect dns migrated_dns_map_1
 parameters
  message-length maximum client auto
  message-length maximum 512
!
service-policy global_policy global
!
: end

Let’s take a look at the configuration…

Configuration

There are two things we have to fix here:

  • We need to configure the ASA to permit traffic that enters and exits the same interface.
  • Traffic from the 192.168.10.0/24 subnet has to be NAT translated.

Before we make any changes, let’s try a ping from our remote VPN user:

C:\Users\H1>ping 2.2.2.2

Pinging 2.2.2.2 with 32 bytes of data:
Request timed out.
Request timed out.
Request timed out.
Request timed out.

Ping statistics for 2.2.2.2:
Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),

As expected these pings are failing. Let’s configure the ASA to permit traffic that enters and exits the same interface:

ASA1(config)# same-security-traffic permit intra-interface

The command above will allow the traffic to be routed. The second thing to do is to configure a NAT rule:

We're Sorry, Full Content Access is for Members Only...

If you like to keep on reading, Become a Member Now! Here is why:

  • Learn any CCNA, CCNP and CCIE R&S Topic. Explained As Simple As Possible.
  • Try for Just $1. The Best Dollar You've Ever Spent on Your Cisco Career!
  • Full Access to our 660 Lessons. More Lessons Added Every Week!
  • Content created by Rene Molenaar (CCIE #41726)

507 Sign Ups in the last 30 days

satisfaction-guaranteed
100% Satisfaction Guaranteed!
You may cancel your monthly membership at any time.
No Questions Asked!

Tags: ,


Forum Replies

  1. Hi Rene,

    Nice Article . Please carry on .

    br/
    zaman

  2. Hi Rene,

    ASA1(config)# nat (OUTSIDE,OUTSIDE) source dynamic VPN_POOL interface

    I got few doubt about the above statements

    [1] Why is the key word SOURCE used in the NAT statement

    [2] waht effect it would make if the Dynamic is changed to Static in NAT statment

  3. STATIC is a one to 1 mapping ie public 8.8.8.8 maps to private 10.10.10.1 all the time.

    DYNAMIC would be used if you had multiple connections that needed to be NATTed as you can then define a range of IP addresses using an access list and when a NAT translation needed to be made, then it would use a free public IP address from the access list.

  4. Rene,

    I was thinking through how to lab up this lesson and was having trouble on the layout for the cloud that labeled outside and the vpn user. I was thinking the cloud was a router with regular ospf passing all traffic and the vpn user… Could you point me in the right direction (configs) on how to lab up this lesson

    thank you

  5. Hello Christopher

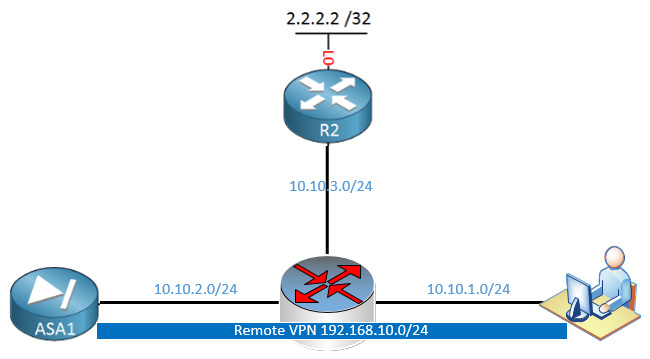

    Yes, actually, you’re on the right track. You can create a router with three interfaces, each on a different subnet. Say something like this:

    //cdn-forum.networklessons.com/uploads/default/original/1X/faa6c2a873f74ae636d9ace51661a2d25e161669.jpg

    In this case, all of the 10.10.X.X address space can be considered “the Internet.”

    You can use OSPF if you like to convey routing information to all routers involved, or you could use static routing if you like as well. Just keep in mind that both the ASA and R2 must be informed of each other’s netw
